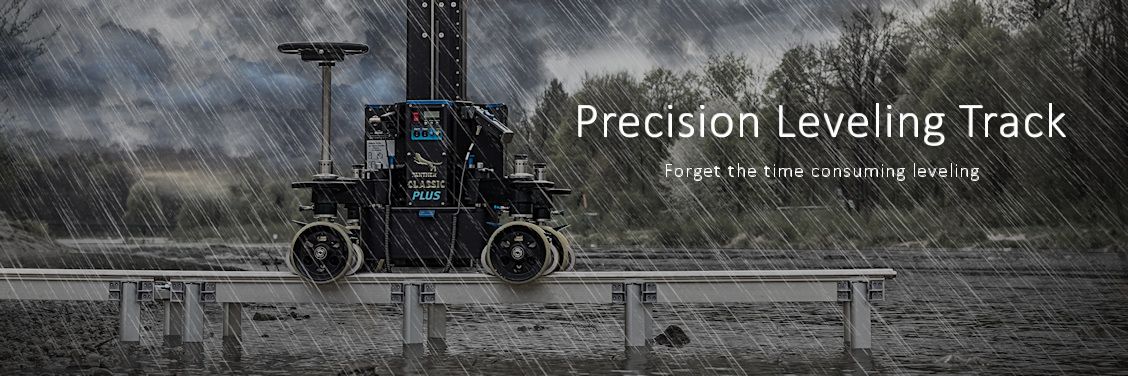

Precision Leveling Track

New ways of leveling


Save time on set – with the new innovative Panther Precision Leveling Tracks with integrated leveling system.

Discover this amazing Track system by Panther, that has received multiple international Awards because of its benefits.







Features:

3 Step Leveling - compact transport - Stainless steel cover
Very Stable due to precise aluminum profile

Odoo CMS - a big picture

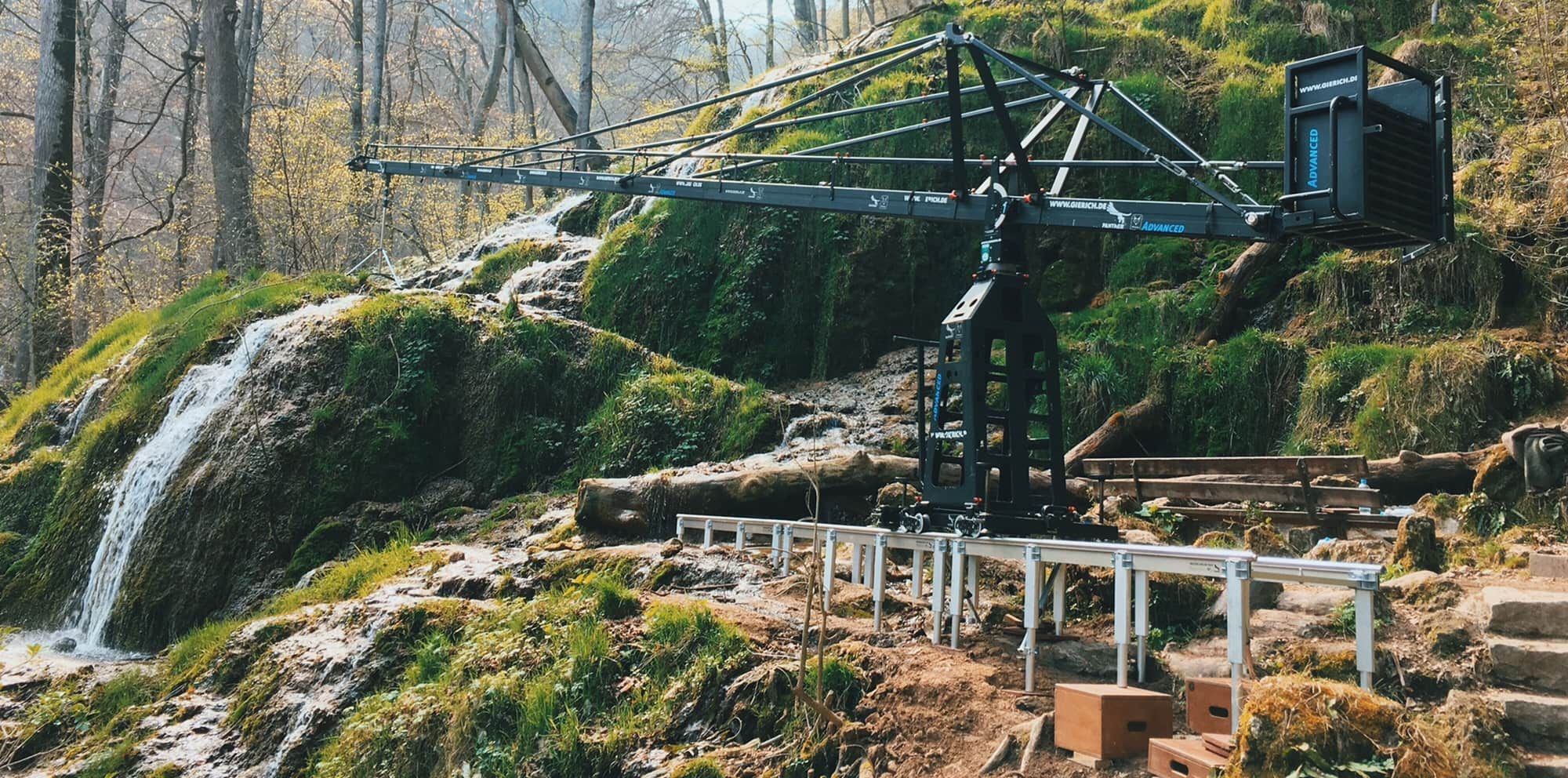

PRECISION LEVELING TRACK

IN ACTION

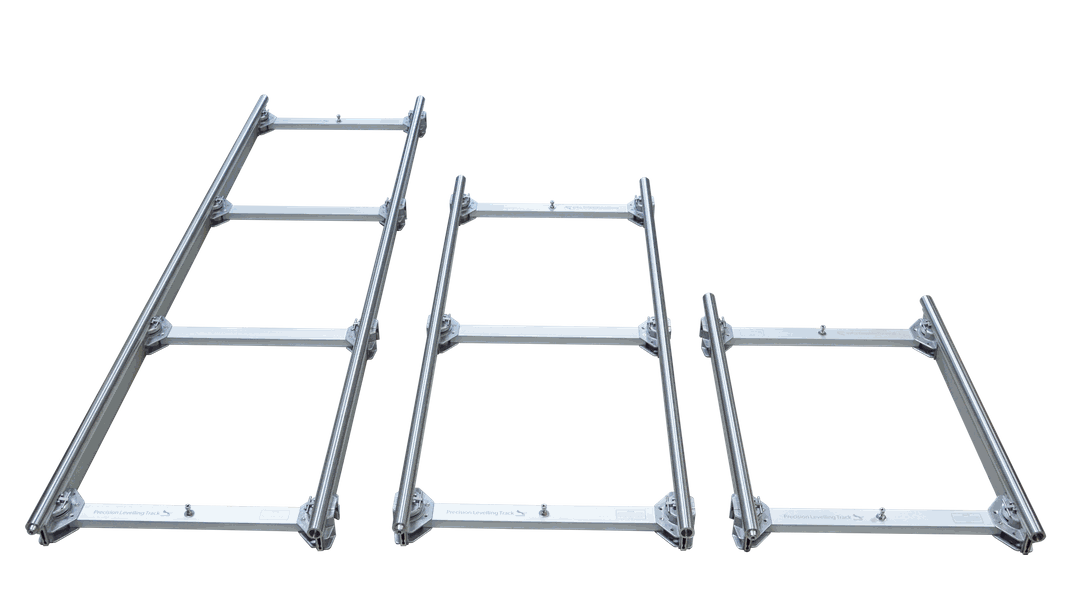

Tracks

Perfect design meets maximum flexibility

Odoo CMS - a big picture


PLT (gauge: 62cm) - 0,9 m / 3 ft. (228080)
PLT (gauge: 62cm) - 1,6 m / 5 ft. (228081)
PLT (gauge: 62cm) - 2,3 m / 7,6 ft. (228082)

PLT (gauge: 100cm) - 0,9 m / 3 ft. (228084)
PLT (gauge: 100cm) - 1,6 m / 5 ft. (228085)
PLT (gauge: 100cm) - 2,3 m / 7,6 ft. (228086)


Curves

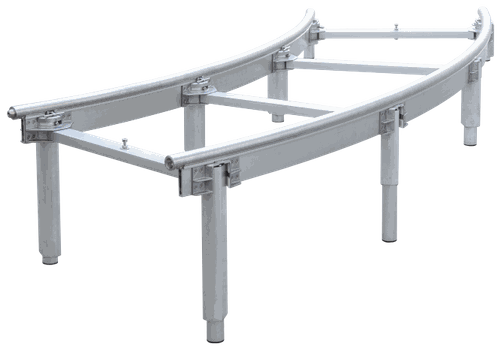

For maximum flexibility and creativity there are Precision Leveling Track Curves (228083) available.

Due to its' 45° bend, you would need a total of 8 curves for a full circle.


Odoo text and image block
Odoo image and text block

For easy transportation the tracks can be folded.

Optional it is possible to mount the tracks with a fixed track gauge.


Odoo CMS - a big picture

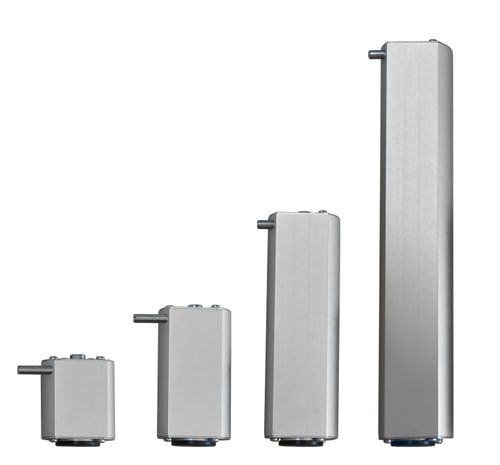

TelesCopic Tubes

Now it becomes interesting

Odoo CMS - a big picture

Leveling

Various Telescopic Tubes offer you infinitely variable leveling possibilities from 0 cm up to 67 cm / 26,4".

By simple pushing the button the inner tubes comes out of the Telescopic Tube.

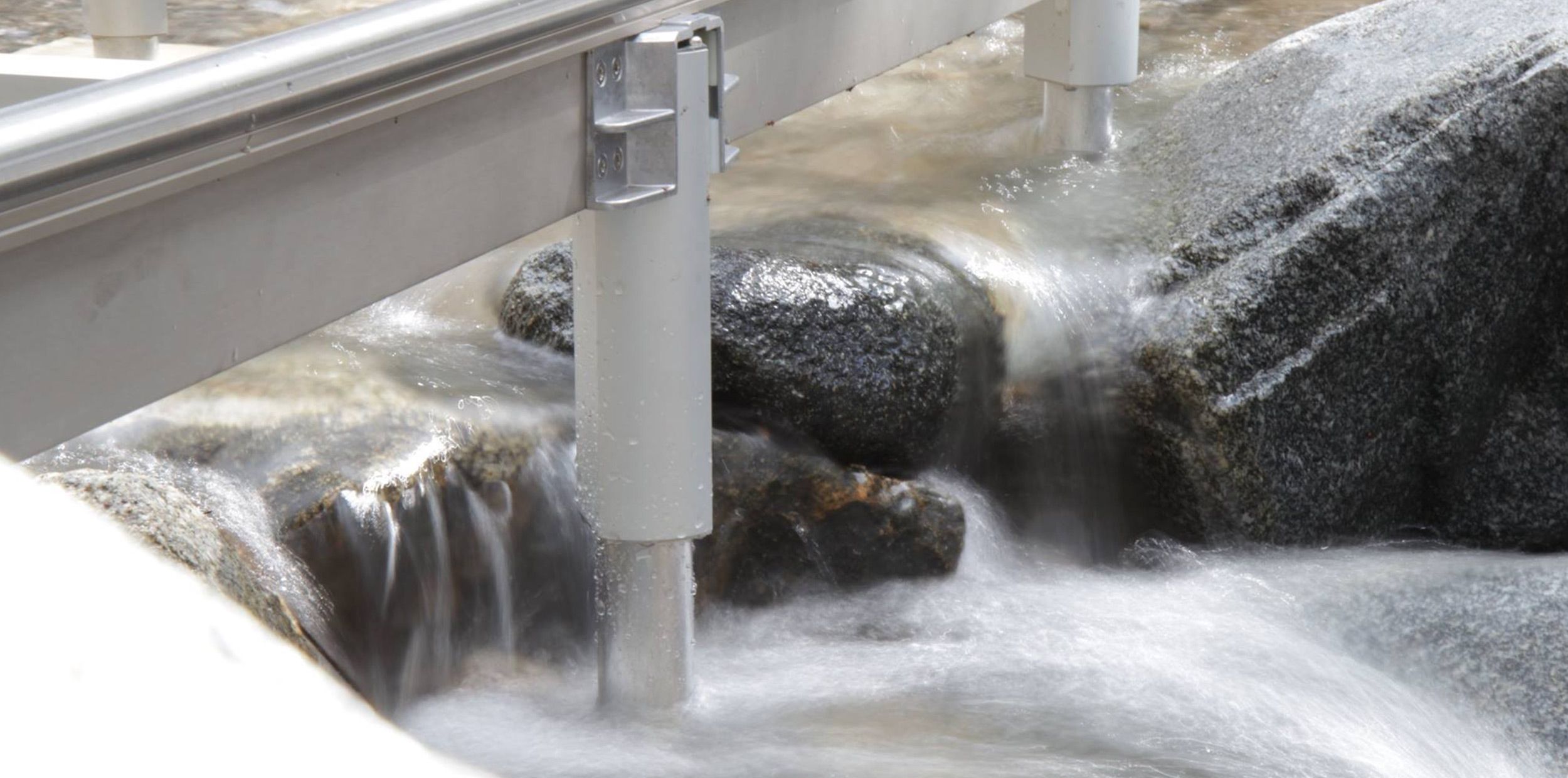

Even in difficult environments and situations like snow or water, the Telescopic Tubes perform extremely well and can be used without hesitation.


Odoo text and image block

3 STEP LEVELING

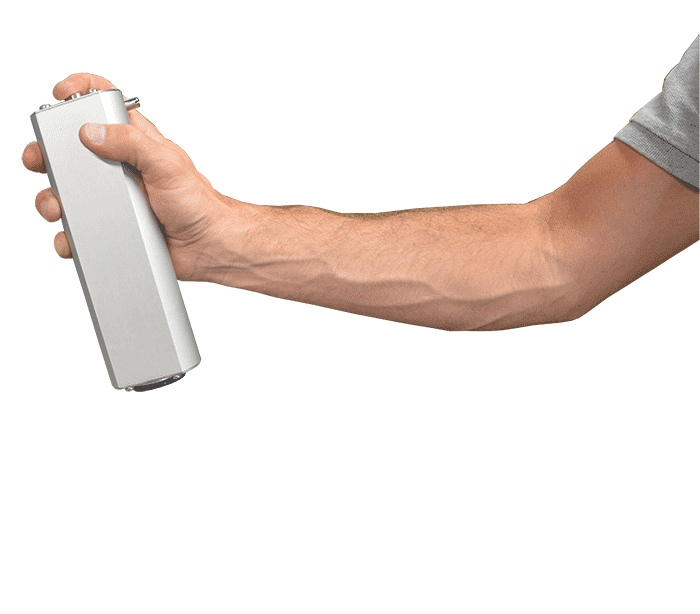

The Telescopic Tubes are mounted without any tools and can be adjusted stagelessly. Every Telescopic Tube has a payload of 850 kg / 1874 lbs. A track integrated adjustment mechanism makes the levelling very easy.

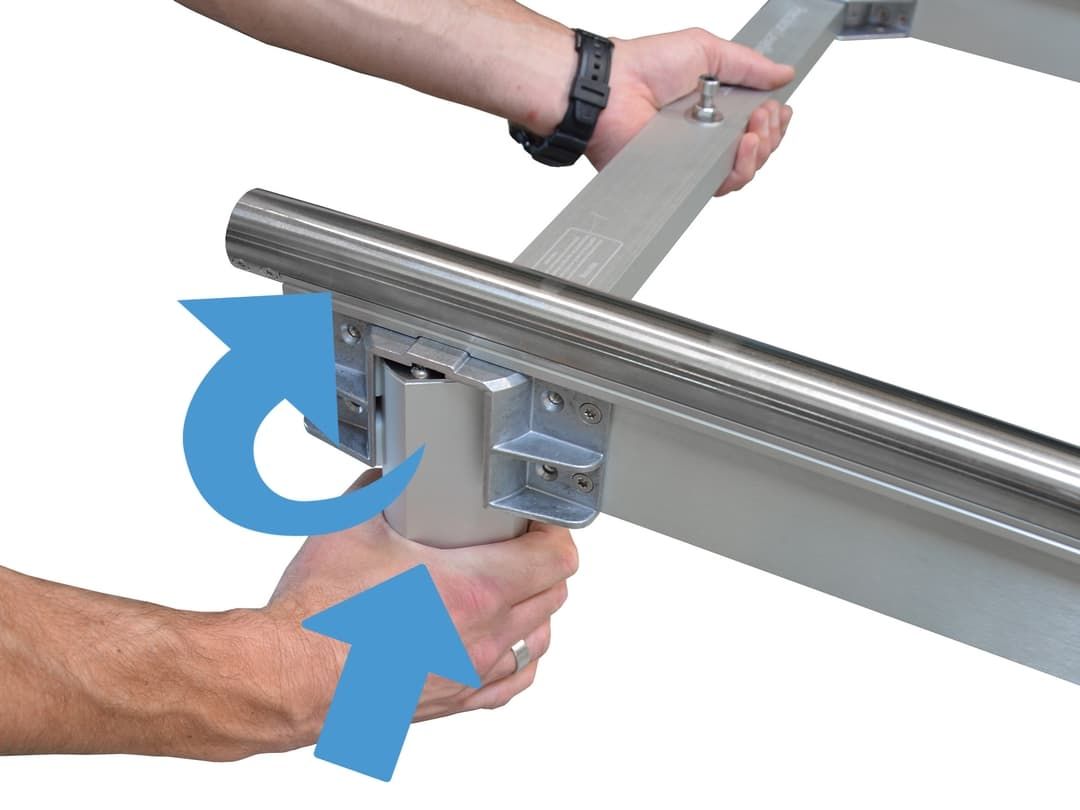

1: Insert the Telescopic Tube toolfree and turn around to lock it

2: Press the integrated leveling mechanism

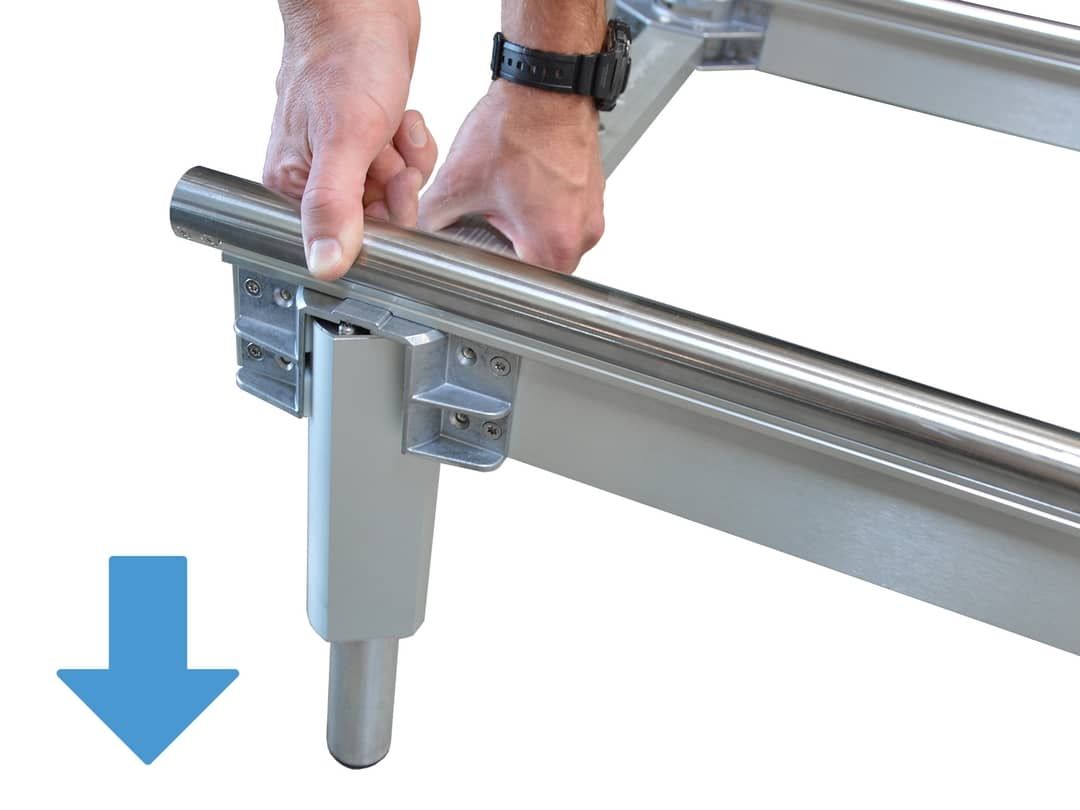

3: Tube comes out - now level it to the required height




The following telescopic tubes are available:

Telescopic Tube 7cm / 2.8"

Telescopic Range:

0-4.5cm = 4.5cm /1.6"

228087

Odoo - Sample 2 for three columns

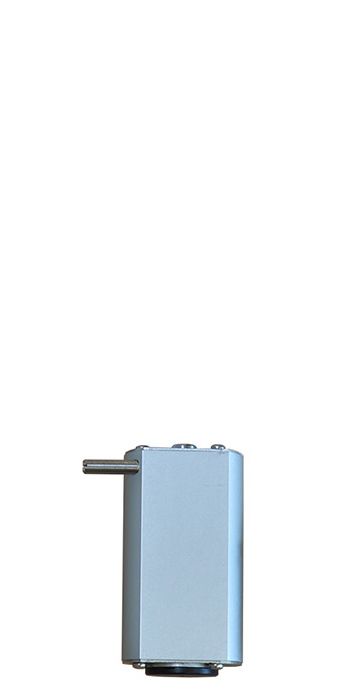

Telescopic Tube 11.5cm / 4.5"

Telescopic Range:

4.5-13cm = 8.5cm /3.3"

228088

Odoo - Sample 3 for three columns

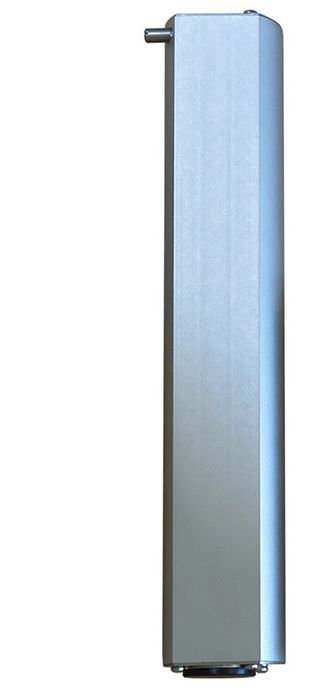

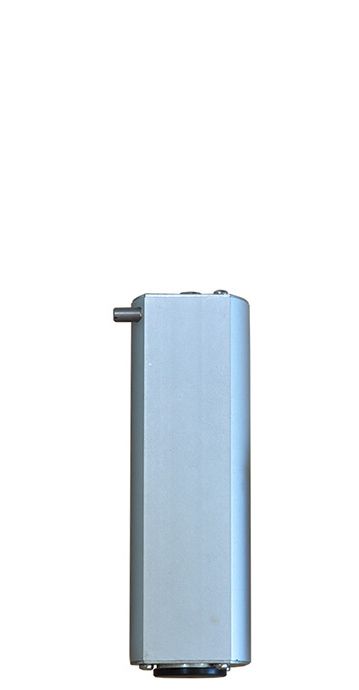

Telescopic Tube 20cm / 7.9"

Telescopic Range:

13-29cm = 16cm /6.6"

228089

Odoo - Sample 3 for three columns

Telescopic Tube 36cm / 14.2"

Telescopic Range:

29-60cm = 31cm /12.2"

228090

Odoo CMS - a big picture

Other Features and Options

Wood Plates (228096) are available for unstable ground. Fits perfectly to the Telescopic Tubes

New innovative and lightweight stainless steel track protection offers a maximum of resistance and protects the track surface

For heights over 50 cm / 19,7" and crane usage we have Cross Beams (228092) available, which enable more stability – even at high loads
