compact ONE

The easy-to use one motor system

The compact ONE is an easy-to use one motor LCS, which comes ready to shoot with either ARRI`s CLM-4 or CLM-5 motor, offering start/stop cables for most standard cameras.


Easy-to-use at a low price

compact ONE is the ready-to-use entry level one axis control system from cmotion. Both the camin and the hand controller follow the same design as the regular compact LCS, making it the most ergonomic system in this competitive price range.

The single page menu clearly displayed on the integrated 2.3” screen guarantees an easy plug and play set-up and includes features such as automatic and manual motor calibration, adjustable digital lens limits, motor torque adjustment, direction control and run/stop command.

Each compact ONE set is supplied with either a CLM-4 or CLM-5 motor. With a total on-board weight of less than 600g (with CLM-4 motor), compact ONE is the ideal system for any stabilizing system. Additional run/stop cables are available for ARRI, Blackmagic, Canon, Red and Sony.
Odoo - Sample 1 for three columns

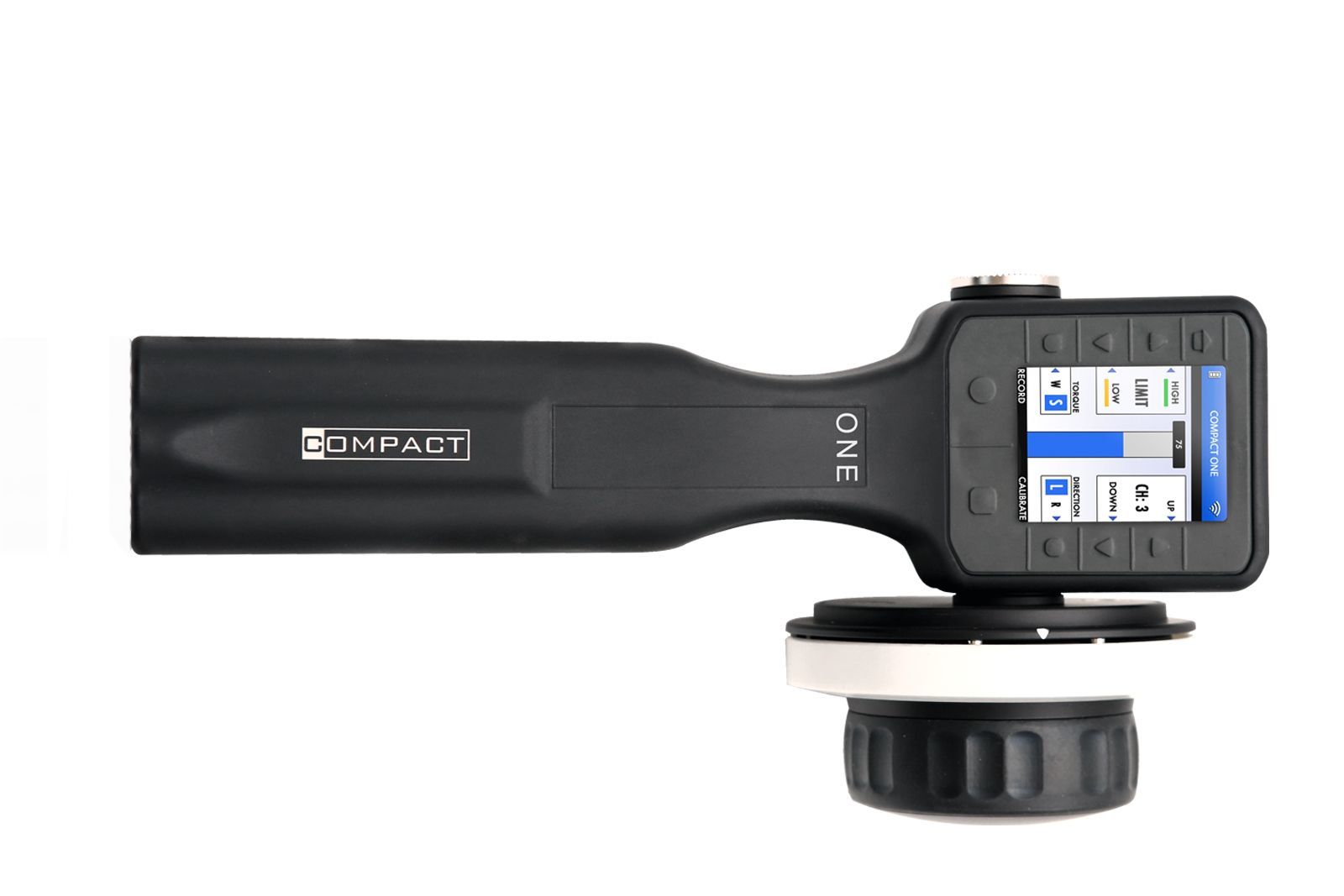

compact ONE hand unit

Constructed using quality materials and available in ergonomic configurations for either right or left handed operators, the compact LCS hand unit breaks the mould with its integrated 2.3” color screen capable of displaying data and menu options even in direct sunlight. Thoughtfully laid out function buttons make navigating the menu settings quick and easy.

Odoo - Sample 2 for three columns

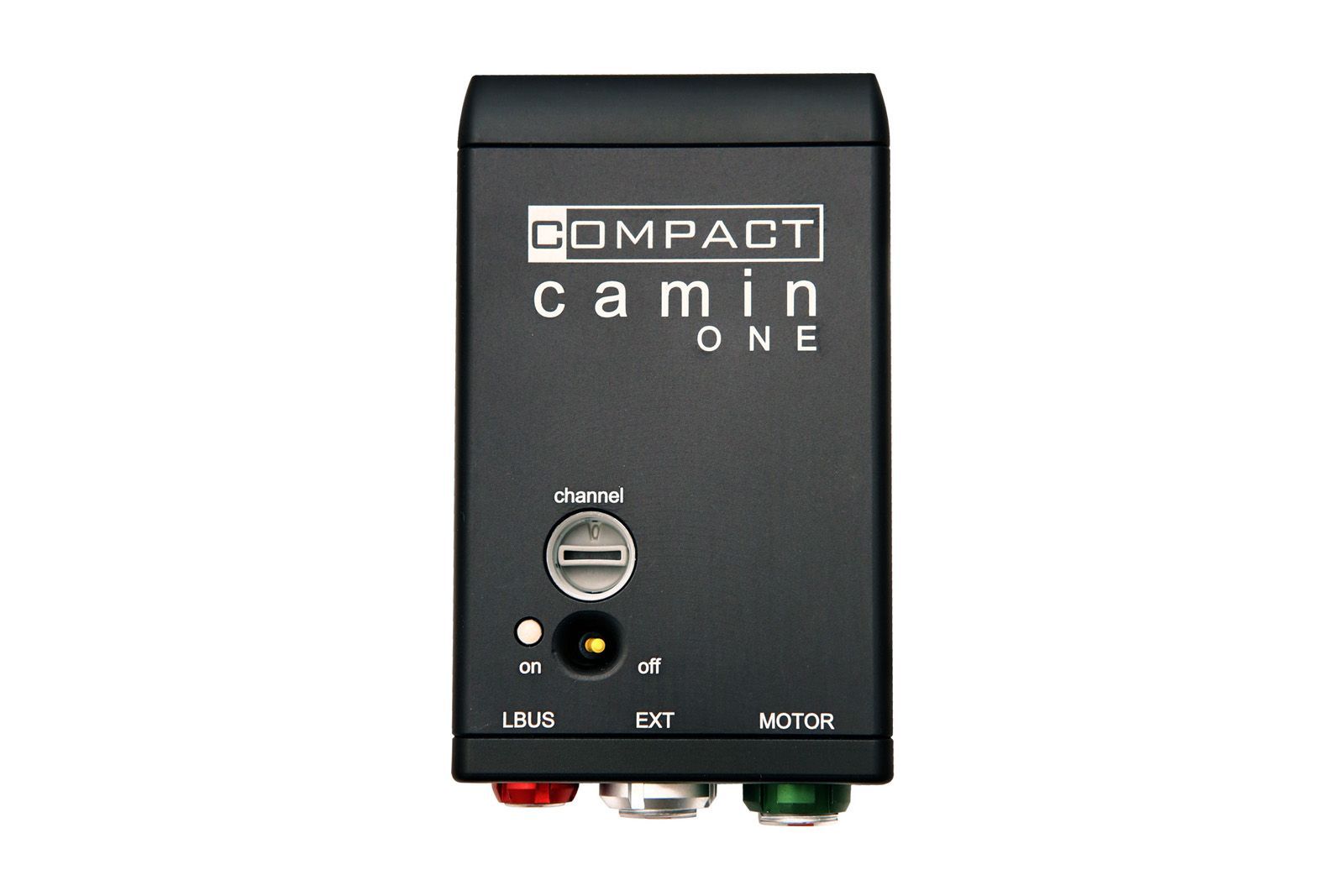

compact ONE camin

The compact camin is a small and lightweight wireless box that can be mounted anywhere on or near the camera.
Using just 3 connectors, the compact camin provides an interface for:
  • power

  • control one CLM-4 or CLM-5 motor

  • universal interface for camera run/stop control for  today's popular cameras

Odoo - Sample 3 for three columns

ARRI CLM-motors

The compact ONE is offering highest performance with ARRI`s CLM-motors. Operators have the choice between the small, but fast CLM-5 motor or the higher torque CLM-4 motor, to drive stiffer lenses.

technical data



weight of hand unit
677 g including battery and marker ring
weight of camin
156 g
weight of motor
249 g (CLM-4), 145 g (CLM-5), including clamp
wireless frequency
2.4 Ghz
wireless range
up to 30m (100 feet) indoor, 150m (490 feet) outdoor
wireless channels
8 channels
environmental requirements
from -20° to 50° C (-4° to 122° F)
operational hand unit with fully charged battery
up to 8 hours
transmission delay
<10ms
Software update via USB
Yes
maximum axis control
one motor
hardwired operation possible
Yes (via LBUS cable from hand unit to camin)
same function for left and right handed operator
Yes (option for cous knob on the right or left side when ordering, please contact sales@cmotion for more information)
independent wireless control units
1
display on hand unit
3.2" color TFT
Start/stop function
ARRI, RED, Sony,  Canon, Black Magic
set direction of motor
Yes
set torque of motor
Yes
set digital lens limits
Yes
manual calibration (for lenses without hard stops)
Yes
shows battery and connection status
Yes
connectors
hand unit: Le 4p, USB
camin: Le 4p, Le 10p (EXT), Le 7p (motor)
motor compatibility
CLM-4, CLM-5 (with Le 7p connector)
power supply hand unit
battery, 2400mAh 7.2V
power supply camin / motor
from 14V to 32 V
compact ONE set (E)

Compact One Set (E)

--A108

ready to shoot one motor compact ONE system with ARRI CLM-4 for light weight operation

Compact One Set (E)

--A113

ready to shoot one motor compact ONE system with ARRI CLM-5 for light weight operation

compact ONE set with CLM-5 (E)

Specification:

Compact ONE is the  ready-to-use entry level one axis  control system from cmotion.
Both the camin and the hand controller follow the same design as the regular compact LCS, making it the most ergonomic system in this competitive price range.

The single page menu clearly displayed on the integrated 2.3” screen guarantees an easy plug and play set-up and includes features such as automatic and manual motor calibration, adjustable digital lens limits, motor torque adjustment, direction control and run/stop command.

Each compact ONE set is working with either an ARRI CLM-4, or CLM-5 motor.
With a total on-board weight of less than 600g (with CLM-4 motor), compact ONE is the ideal system for any stabilizing system. Additional run/stop cables are available for ARRI, BM, CANON, RED and SONY.

Set includes:

  • compact ONE camin
  • compact ONE hand unit
  • ARRI CLM-4 motor set
  • 3x batteries
  • battery charger
  • rod connector
  • 5x marker rings
  • LRS-7 P-Tap power cable (Le 10p/m to AntB 2P/m)
  • compact travel case

If you wish additional power cables or start/stop cables, please contact: contact@camadeus.com
